DC-Link Metallized Polypropylene Film Capacitor
Large capacity and small size can relpace electrolytic capacitors, better performance and longer life. Used in circuit for filtering energy storage.
Film Capacitors Parameter Table
| Parameter | CLA Series | CLB Series | CLD Series | CLE Series | CLF Series |
|---|---|---|---|---|---|
| Min-uf | 6 | 13 | 33 | 50 | 6.8 |
| Max-uf | 90 | 300 | 3200 | 1000 | 500 |
| Min-V(DC) | 700 | 600 | 600 | 800 | 500 |
| Max-V(DC) | 1100 | 1000 | 4000 | 2000 | 2200 |

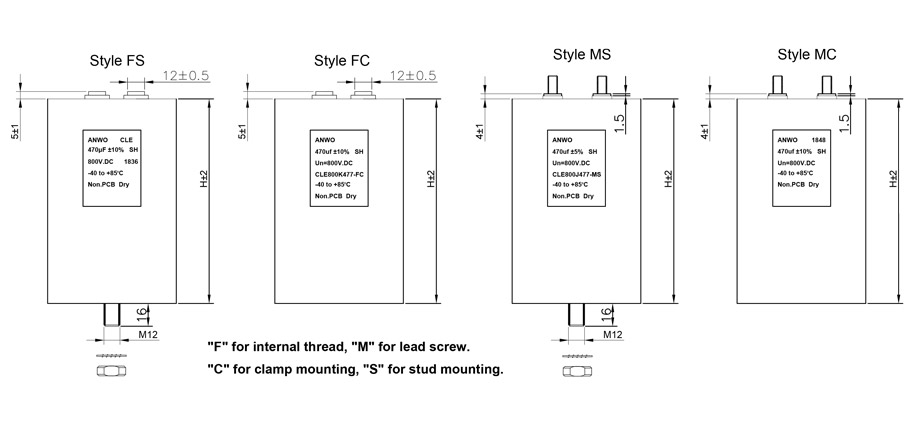

Film Capacitors Outline Drawing
